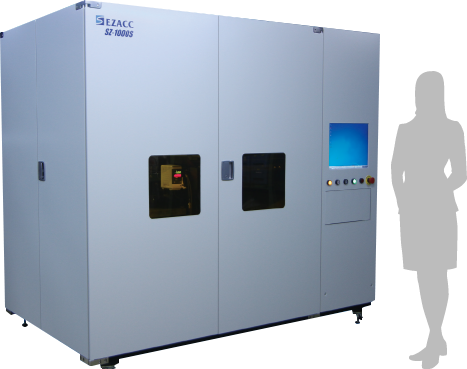

SZ-1000 陶瓷用高精度光學成型設備
行動條碼QR Code
SZ product range
SZ product ranges are High Resolution Stereolithography for Slurry materials that mix functional material into lightcuring resin by "Filler Dispersion"
- Structure suitable for slurry paste material
(Ceramic and metal-based material is also supported) - Possible to make high resolution modeling by the high-definition optical head
(Laser-Spot ∅15μm minimum laminate thickness 10μm) - Customize is available
(Stage size, Material supply, shape of blade etc.)
Application reference
- Automobile parts modeling
- Modeling company for making various shape
- Toilet basin, washing basin sampling
- Kitchen modeling
- Glasses, goggles
- Gear, Mold
- Chip
- Condenser
- Electric socket
- Artificial Bone, joint
- Dental materials
- Container, beaker
- Pen
- Emblem
- Display Panel
- Helmet
- Key
- Cylinder
- Die-cast
- Connector
and others
SZ-1000 Basic specifications
| main body |
Device dimensions (W×D×H) |
2000 × 1200 × 1800mm |
|---|---|---|
| power supply | lsingle phase AC100V 1.5kvA | |
| installation environment | 23±2℅, less than50%RH | |
| optical system |
laser | Individual CW laser (355nm/CW laser) |
| output power | 250mw | |
| power control | Power control by the AOM | |
| Deflection device | Digital control system scan system of Galvanometer Mirror |
|
| Spot diameter | ∅15～∅100μm | |
| modeling | modeling area | 100 × 100 × 50mm |
| contrasting method | the recoating method by thixotropic material | |
| laminate thickness | 10μm |
