Aseptic 無菌取樣系統及取樣瓶
Aseptic
無菌取樣系統及取樣瓶
Aseptic system & sampling bottles
廠牌：Keofitt/Denmark
供應商：建成科學儀器股份有限公司
聯絡電話：02-29103818
| 快速詢價 |
行動條碼QR Code
‧Water / 水
‧Milk / 奶品
‧Medical solutions / 藥品溶劑
‧Beer / 啤酒
‧Ketchup / 蕃茄醬
‧Creams and lotions / 乳液及化妝塗劑
‧Milk / 奶品
‧Medical solutions / 藥品溶劑
‧Beer / 啤酒
‧Ketchup / 蕃茄醬
‧Creams and lotions / 乳液及化妝塗劑
The safest way to the laboratory

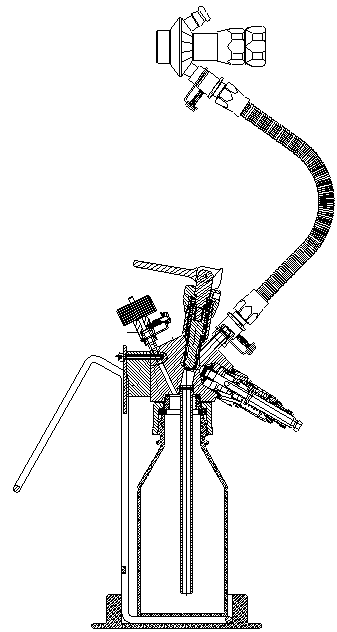

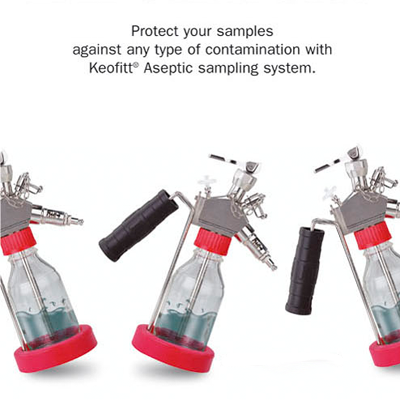

The Keofitt® Aseptic system enables user to take a truly representative aseptic sample. The system protects the sample against airborne contamination, while taking the sample and during transportation. Sterilization takes place by steam with bottle head in place.
The system is compatible with all small and medium sized sampling valves.
Other Keofitt® sampling bottle heads offer protection from contamination while sampling and some protection during transport. Sterilization takes place in autoclave. The bottle heads can be connected to all small and medium sized sampling valves.
Other Keofitt® sampling bottle heads offer protection from contamination while sampling and some protection during transport. Sterilization takes place in autoclave. The bottle heads can be connected to all small and medium sized sampling valves.
The Sampling bottle heads and Aseptic systems are used in a range of applications, such as breweries, dairies, pharmaceutical and biotechnological industries, with wide range of products such as:
‧Water
‧Milk
‧Medical solutions
‧Beer
‧Ketchup
‧Creams and lotions
The Aseptic system can be fitted with different heads to fit most applications. Other inlet connectons are optional.
General on the Keofitt Aseptic sampling valves.
Temperature range:
Silicone / EPDM Membrane 0 to 130ºC / 32 to 266ºF
PTFE Membrane 0 to 150ºC / 32 to 302ºF
Pressure range:
Inlet pressure:0 to 6 bar(g) / 0 to 87 psi
Bottle pressure:0 to 1.2 bar(g) / 0 to 17.4 psi
Material:
Steel parts:AISI 316L
Membrane PTFE FDA approved
body surface:
Inner surface Ra 0.8 mm / 0.00003 in
Electro polish outside
Material certificate:3.1.B
