Process Oxygen Analyzer 電化學式氧氣分析儀 Mini-ICS

氣體分析； 洩漏； 偵測儀器； 固定式氣體偵測器； Neutronics； 電化學分析機器；

廠牌：Neutronics Inc.

電化學式氧氣分析儀 Mini-ICS用於測量氧氣。通過連續測量氧氣，提供工藝製造環境增加安全係數。有助於使製造商能夠保持安全的含氧量減少惰性氣體消耗和VOC排放。

產品規格：
傳感器：電鍍，各種型號，以滿足特定的應用需求
測量範圍：0.1％〜50％的氧氣 - 自動或固定範圍
顯示屏：0.75“7段LED字母數字顯示;彩色編碼LED的系統狀態，紅色=低流量/ O2報警，黃色=故障，綠色=正常
用戶界面：3按鍵運營商; MODE，UP，DOWN
響應時間：T90 <20秒。
精度：+/- 2％滿刻度偏轉
信號接口：4-20mA模擬輸出，0-1 / 5 / 10VDC模擬輸出，RS-232端口的服務
報警和控制：用戶可調節設定點繼電器輸出惰控制電磁閥，校準電磁閥，故障報警，報警O2
功率：110 / 220VAC 50-60赫茲，或12 / 24VDC（10W）
外殼選項：NEMA 4面板安裝，NEMA 4和NEMA 4X壁掛式，NEMA 4/7防爆，19“機架安裝自定義的多模塊機架式機箱也可提供。
保固：1年。

The Mini ICS™ is Neutronics' most affordable, off-the-shelf solution for measuring oxygen in industrial process vessels and gas streams.

By continuously measuring oxygen, the Mini ICS provides increased safety margins in process manufacturing environments. It helps reduce inert gas consumption and VOC emissions by allowing manufacturers to use inert gas only as needed to maintain safe oxygen levels.

The Mini ICS offers extremely low installation cost and comes ready to install with no additional hardware/software needed.

The Mini ICS can be used as a stand-alone instrument or as the analysis component in the Neutronics Inerting Control System (ICS), the only proven system that automatically controls the level of oxygen in process manufacturing. Originally developed for one of the country’s largest chemical manufacturers, Neutronics ICS has been proven reliable in thousands of installations.

Specifications:

Sensor: Galvanic, available in various models to meet specific application needs
Measurement Range: 0.1% to 50% Oxygen - auto or fixed range
Display: 0.75" 7-segment LED alphanumeric display; color-coded LED's for system status, Red=Low Flow / O2 Alarm, Yellow=Fault, Green=Normal
User Interface: 3 push-button operators; MODE, UP, DOWN
Response Time: T90<20 sec.
Accuracy: +/- 2% full-scale deflection
Signal Interface: 4-20 mA analog output, 0-1/5/10VDC analog output, RS-232 service port
Alarms & Controls: User-adjustable set points with relay outputs for inerting control solenoid valve, calibration solenoid valve, fault alarm, O2 alarm
Power: 110/220VAC 50-60Hz, or 12/24VDC (10W)

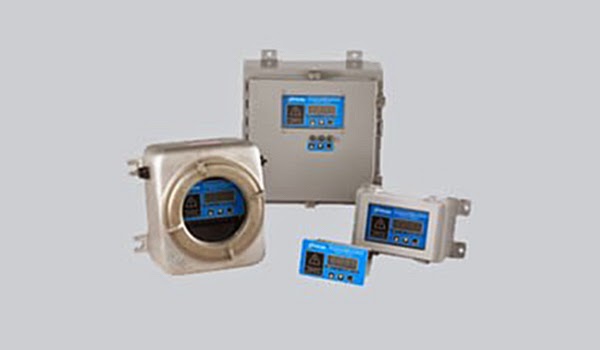

Enclosure Options: NEMA 4 Panel Mount, NEMA 4 and NEMA 4X Wall Mount, NEMA 4/7 Explosion Proof, 19" Rack Mount. Custom multi-module rack mount enclosures are also available.
Warranty: Limited, one yr.
