AD-MD Mupid-One 中型水平電泳槽
AD-MD Mupid-One
中型水平電泳槽
Submarine Mini Electrophoresis System With CE Marking
廠牌：ADVANCE CO.,LTD
供應商：賽恩斯生物科技股份有限公司
聯絡電話：0926104896
| 快速詢價 |
行動條碼QR Code
■Specifications

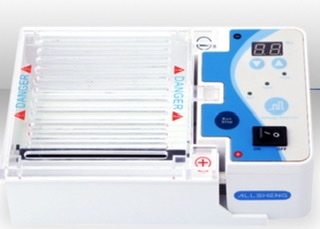

Mupid-One, a submarine type electrophoresis system
| ■Electrophoresis Cell | |
|---|---|
| Overall dimensions | 183mm(W)×59mm(H)×162mm(L) |
| Material | PPHOX |
| Solution volume | Approx. 410-440 ml(includes gel tray and gel) |
| Multi-sample | Multichannel-pipette compatible |
| ■Safety Lid | |
|---|---|
| Overall dimensions | 197mm(W)×38mm(H)×170mm(L) |
| ■Power Supply | |
|---|---|
| Overall dimensions | 75mm(W)×62mm(H)×170mm(L) |
| Weight | 410g |
| Input voltage | AC100〜240V, AC50/60Hz |
| Output voltage |
135V,100V,50V,25V,70V,35V,18V Constant peak voltage of 140V and duty control |
| Timer | Timer operation 0 - 99 min, and continuous mode Temporary shutdown supported |
| Memory function | Automatic memory (the last used V & T) |
| ■Gel Tray | |
|---|---|
| Gel Tray - S | 130mm(W)×16.5mm(H)×59.5mm(L) |
| Gel Tray - L | 130mm(W)×24mm(H)×122mm(L) |
| Quantity | Gel Tray - S : 2 , Gel Tray - L : 1 |
| Material | Heat Registance Materials |
| ■Comb | |
|---|---|
| Multiple number of wells | 13 or 26 wells (13wells: 9mm spacing 26wells: 4.5mm spacing) |
| Quantity | 4 |
| Material | Heat Registance Materials |
| ■Gelmaker Stand | |
|---|---|
| Overall dimensions | 149mm(W)×20mm(H)×125mm(L) |
| Material | Heat Registance Materials |
